Live

Set up Cover Images

BlendVision One allows you to set up a cover image for each status of your live event.

In this article details steps on editing the cover image for your live event:



Access the settings page of your live event

Cover images can only be edited during the following periods:

  • When creating a live event
  • During the “Preparing” ~ “Preview” statuses after the live event is created

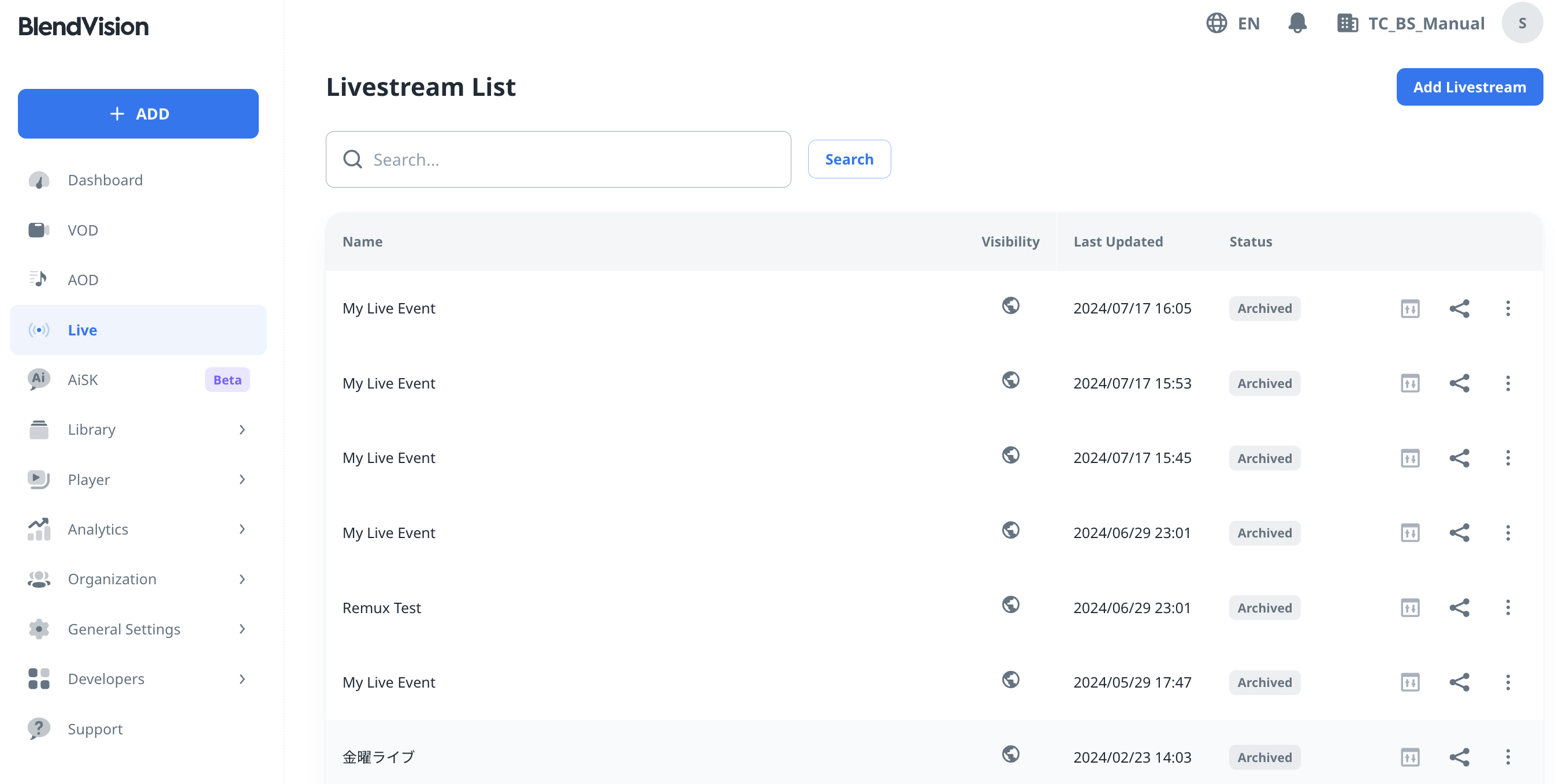

1. You can refer to Add a Live Event to create a new event, or Edit a Live Event for steps on accessing the settings page of a live event via the Livestream List.

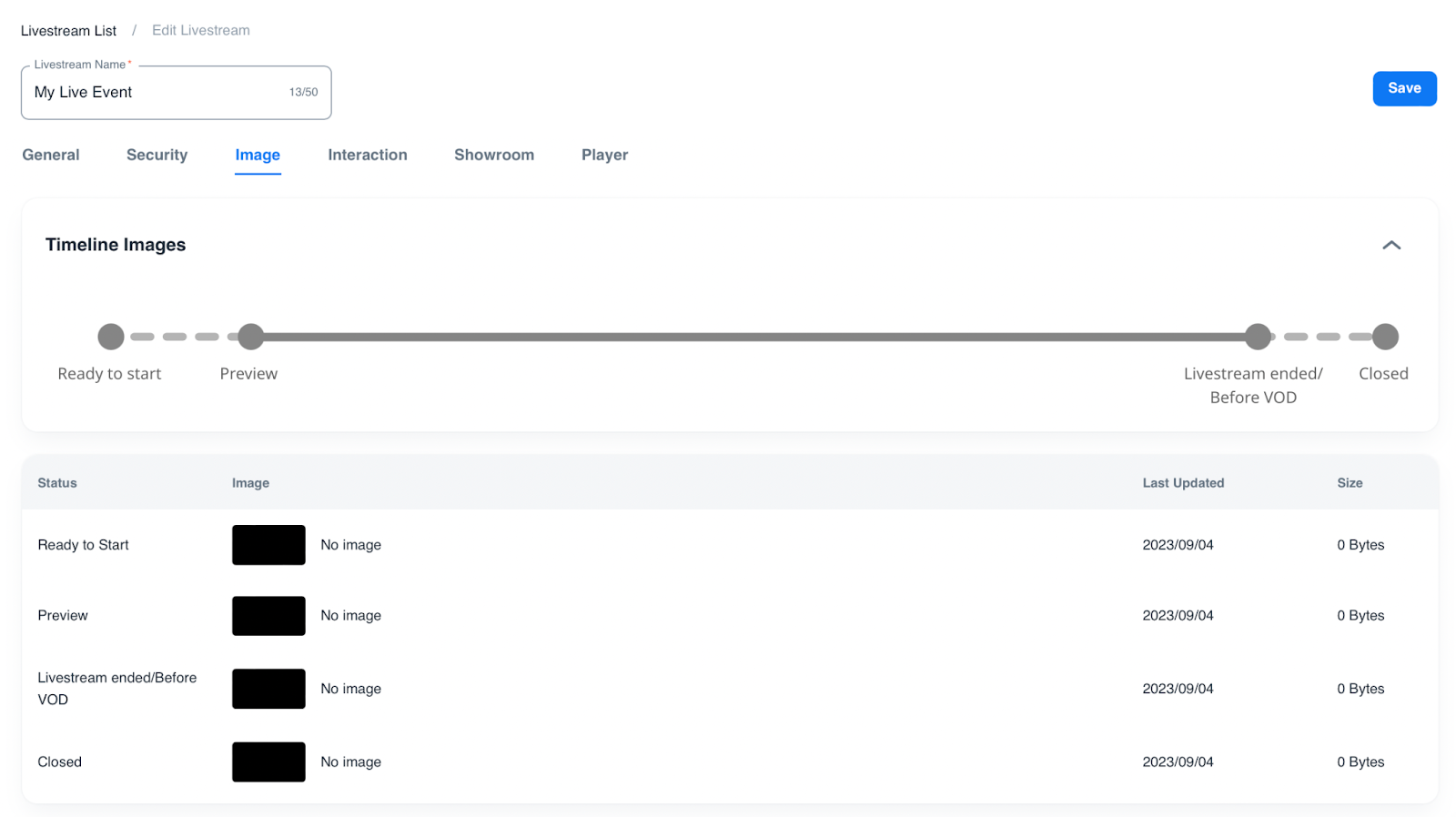

2. To set up a cover image, access the Image tab.



Manage the cover image for each status

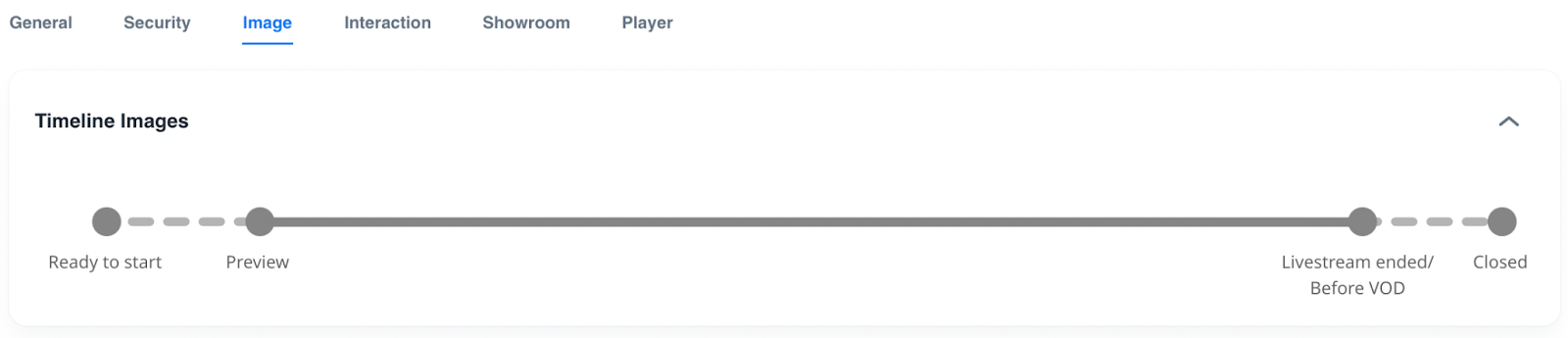

BlendVision One Live module allows you to set different images for the statuses below:

  • Ready to Start: when the live event has built up resources and 12 hours before the scheduled date and time. (at “Wait for Preview” status)
  • Preview: when the event is previewing (at “Preview” status)
    • This cover will only be displayed to the audience's player. The preview player in the control room during the “Preview” status will show the preview video for signal testing or rehearsal.
  • Livestream ended/Before VOD:
    • For live-only events: when the live ends (“Ended” status)
    • For events that enabled the Live-to-Vod function: when the live ends and waiting for VOD start ( “Encoding”~”VOD Ready” status)
  • Closed: when the entire live event and Live-to-VOD ends. (“Closed” status)

Note: you can refer to the Live Module Introduction for a detailed flowchart on status transition.

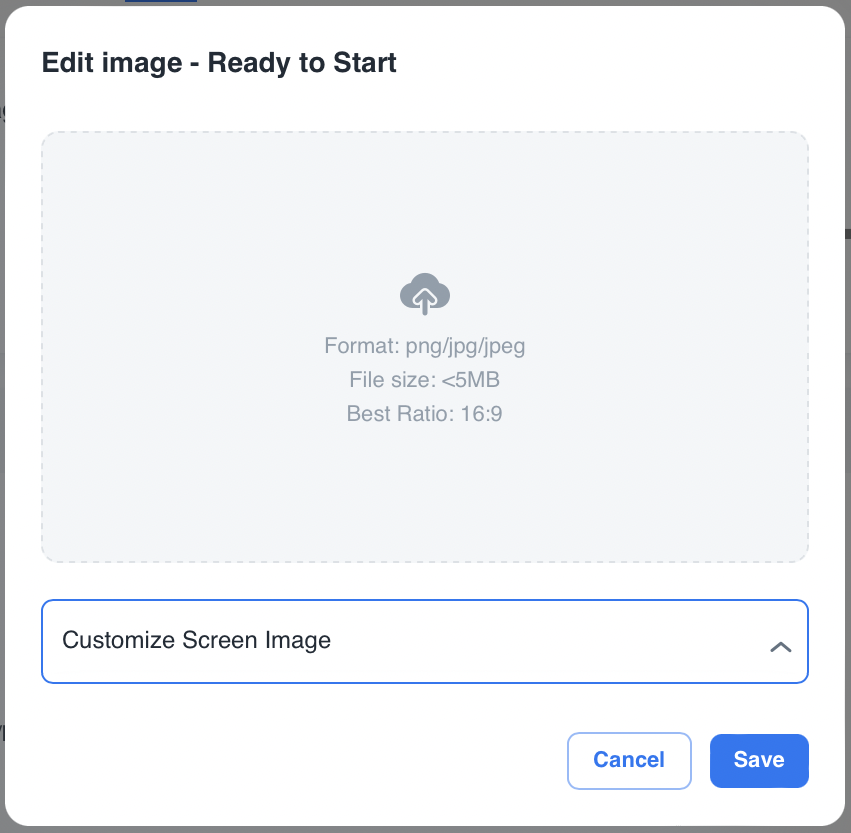

3. To edit the image, please click the preview thumbnail of each status to display the edit pop-up menu.

4. Select from the following options, then press the “Save” button to start uploading:

  • Black Screen: The default option. Will set a black background as the cover image.
  • Customize Screen Image: Upload an image file locally as a cover image
    • File format: png, jpg, jpeg
    • File size: < 5 MB
    • Best raito: 16:9

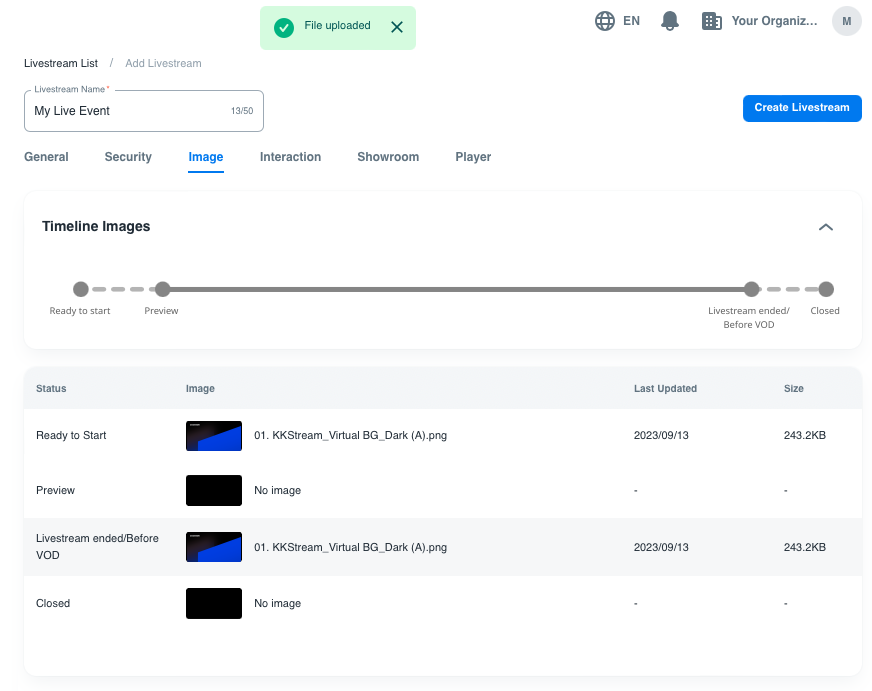

5. Once the upload is complete, you can confirm the preview thumbnail from the Image tab.

6. Press the “Create Livestream” button or “Save” button displayed on the upper-right side to submit and save the new settings.
