Customize Profiles

Profiles define the video resolution, video bitrate, and audio bitrate output for encoding. Furthermore, it also affects the cost of encoding, storage, and CDN usage of the VOD.

BlendVision One allows you to use customized or preset ProfileSets to configure encoding for VOD.

This article details information on preset profiles and steps on how to create and manage customized profiles.



Before we start

  • In BlendVision One, the output format of encoded VOD (such as resolution and codec) is defined by the ProfileSet chosen.
    Profiles are a part of ProfileSets. Please refer to VOD ProfileSets for information on the relation between profiles and ProfileSets.
  • Changes to ProfileSets/profiles will not impact previously encoded VODs. To implement the changes, please create a new VOD and select the preferred ProfileSets.



Preset profiles

Preset profile configurations in BlendVision One are detailed in the following table:

Name Video Codec Resolution Standard Video Bitrate Audio Bitrate Frame Rate
2160p-40Mbps H.264 3840x2160 4K 40.00 Mbps 192 kbps 60fps
2160p-20Mbps H.264 3840x2160 4K 20.00 Mbps 192 kbps 30fps
1080p-10Mbps H.264 1920x1080 FHD 10.00 Mbps 128 kbps 60fps
1080p-5Mbps H.264 1920x1080 FHD 5.00 Mbps 128 kbps 30fps
720p-5Mbps H.264 1440x720 HD 5.00 Mbps 128 kbps 60fps
720p-2.5Mbps H.264 1440x720 HD 2.50 Mbps 128 kbps 30fps
480p-3Mbps H.264 850x480 SD 3.00 Mbps 96 kbps 60fps
480p-1.5Mbps H.264 850x480 SD 1.50 Mbps 96 kbps 30fps
360p-1.4Mbps H.264 640x360 SD 1.40 Mbps 96 kbps 60fps
360p-700kbps H.264 640x360 SD 700 kbps 96 kbps 30fps
240p-800kbps H.264 426x240 SD 800 kbps 64 kbps 60fps
240p-400kbps H.264 426x240 SD 400 kbps 64 kbps 30fps
2160p-20Mbps H.265 3840x2160 4K 20.00 Mbps 192 kbps 60fps
2160p-10Mbps H.265 3840x2160 4K 10.00 Mbps 192 kbps 30fps
1080p-5Mbps H.265 1920x1080 FHD 5.00 Mbps 128 kbps 60fps
1080p-2.5Mbps H.265 1920x1080 FHD 2.50 Mbps 128 kbps 30fps
720P-3.5 Mbps H.265 1440x720 HD 3.5 Mbps 128 kbps 60fps
720P-1.7 Mbps H.265 1440x720 HD 1.7 Mbps 128 kbps 30fps
480P-2.1 Mbps H.265 850X480 SD 2.1 Mbps 128 kbps 60fps
480P-1.0 Mbps H.265 850x480 SD 1.0 Mbps 96 kbps 30fps
360P-1.0 Mbps H.265 640x360 SD 1.0 Mbps 96 kbps 60fps
360P-500 kbps H.265 640x360 SD 500 Kbps 64 kbps 30fps
240P-500 kbps H.265 426x240 SD 500 kbps 64 kbps 60fps
240P-300 kbps H.265 426x240 SD 300 kbps 64 kbps 30fps



These profiles already applied into the preset ProfileSets provided. You may choose to use the preset ProfileSets or apply these profiles into your custom ProfileSets.



Customized profiles

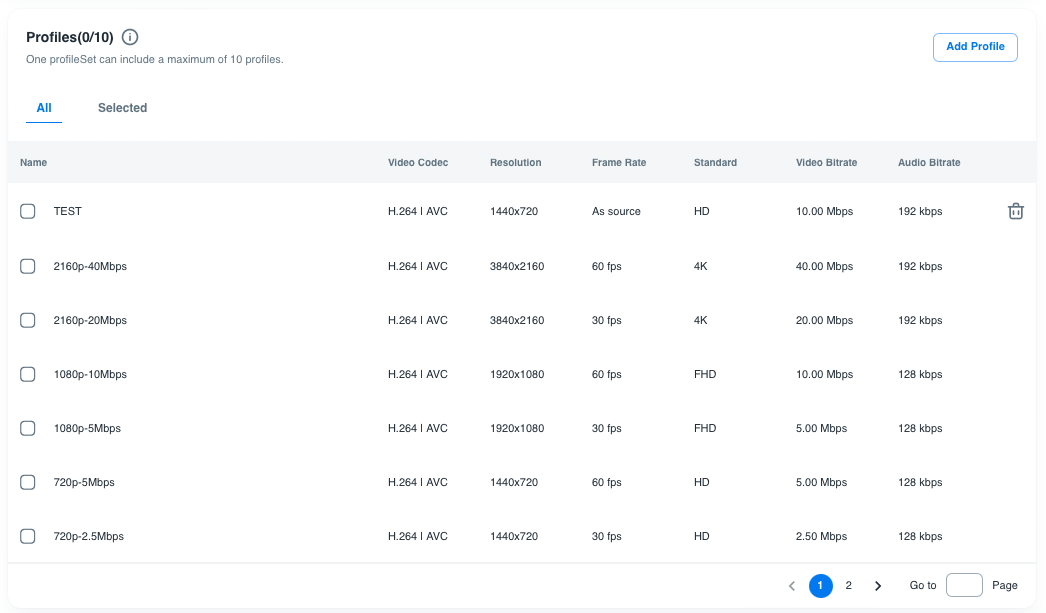

To customize profiles, create or edit a custom ProfileSet to access the Profiles list on the ProfileSet’s creation/edit page.

The following article sections detail how to create and manage custom profiles:

Add custom profiles

In order to create a custom profile, please refer to the following steps:

1. Press the “Add Profile” button displayed in the Profiles list in the ProfileSet's creation/edit page.

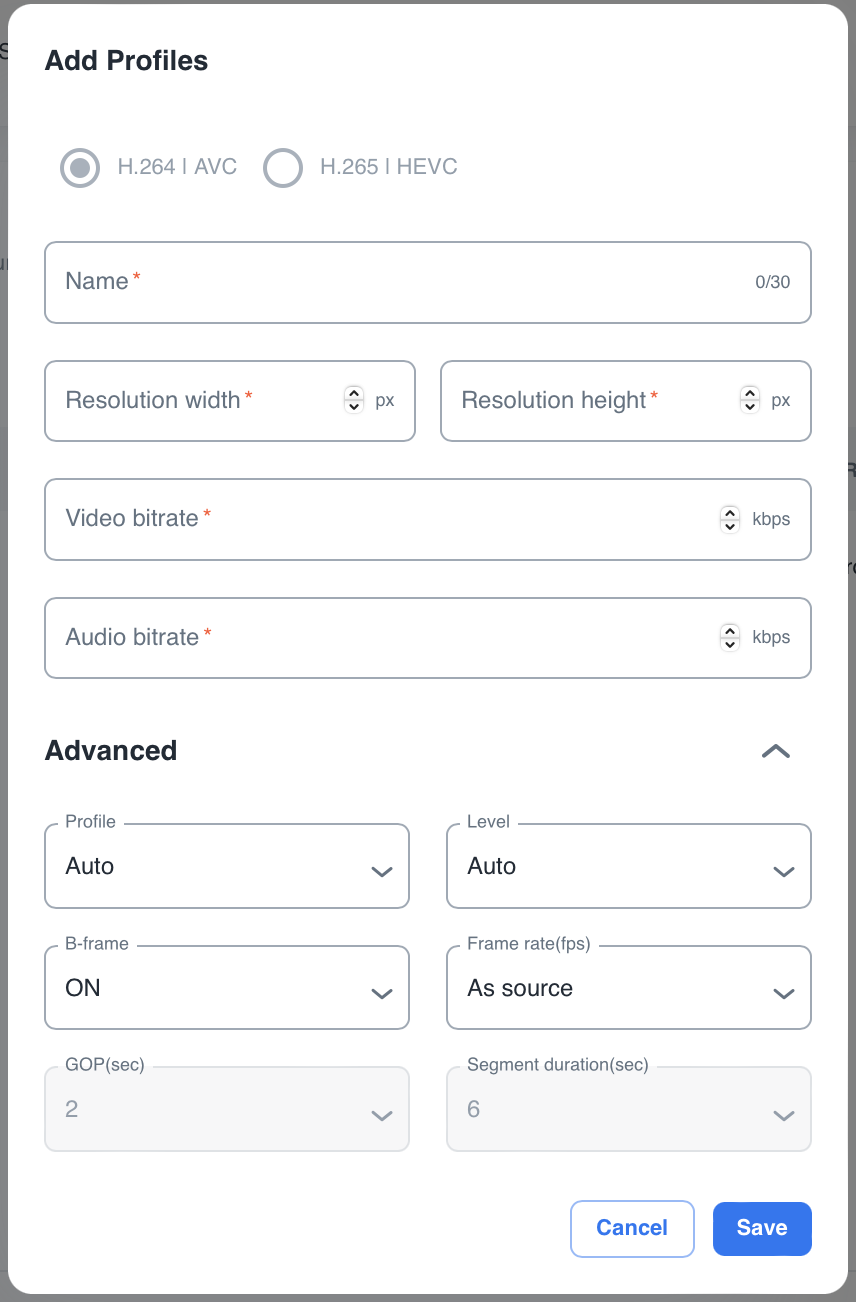

2. An “Add profiles” pop-up will display, allowing you to set up the configurations of the new profile:

  • The video codec (H.264 or H.265) will be limited by the configurations of the ProfileSet. If you want to change the codec, please refer to Customize ProfileSets to change the “ProfileSet Configuration”.

3. Set up the basic configurations for the new profile:

  • Name: enter the profile name that will be displayed in the profile list. (up to 30 characters)
  • Resolution width: defines the horizontal video resolution. Enter an even number between 128 and 4096.
  • Resolution height: defines the vertical video resolution. Enter an even number between 128 and 2304.
  • Video bitrate: defines the amount of data transmitted during video streaming (kbps)
    • If the video codec is H.264, enter a number between 60 and 60000.
    • If the video codec is H.265: enter a number between 60 and 45000.
  • Audio bitrate: defines the amount of data transmitted during audio streaming (kbps). Enter a number between 24 and 384.

4. (Optional) You can set up advanced settings for the new profile if needed:

Note: these values will be limited by the video codec of the ProfileSet.

Field Name Definition Video codec: H.264 Video codec: H.265
Profile Specifies which coding tools and algorithms are used for streaming
  • Auto (Default)
  • Baseline
  • Main
  • High
  • Auto (Default)
  • Main10
Level Specifies the processing load and storage capacity of the decoder.
  • Auto (Default)
  • 1
  • 1.1
  • 1.2
  • 1.3
  • - 2
  • - 2.1
  • - 2.2
  • - 3
  • - 3.1
  • - 3.2
  • - 4
  • - 4.1
  • - 4.2
  • - 5
  • - 5.1
  • - 5.2
  • Auto (Default)
  • 1
  • 2
  • 2.1
  • 3
  • 3.1
  • 4
  • 4.1
  • 5
  • 5.1
  • 6
B-frame Defines whether to enable bi-predictive frames to enhance video compression and reduce data transmission to allow for smoother streaming.
  • On (Default)
  • Off
If the Profile field is set as “Baseline”, B-frame will be fixed as "Off"
  • On (Default)
  • Off
Frame Rate Defines the number of frames displayed per second.
  • As source (Default)
  • 10
  • 15
  • 23.97
  • 24
  • 25
  • 29.97
  • 30
  • 50
  • 59.94
  • 60
  • As source (Default)
  • 10
  • 15
  • 23.97
  • 24
  • 25
  • 29.97
  • 30
  • 50
  • 59.94
  • 60
GOP (Sec)

Defines the number of GOP (group of pictures) per second.

The value is fixed as “2”.
Segment (Sec)

Defines the duration (in seconds) for each segment in the video stream.

The value is fixed as “6”.

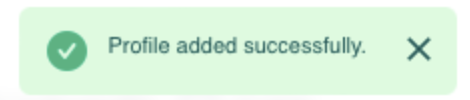

5. Press the “Save” button to submit the new profile. A notification will display, confirming the custom profile was created.



Note: After the custom profile is created, apply it by creating or editing a custom ProfileSet.

Delete custom profiles

Before deleting profiles, beware of the following:

  • Preset profiles can not be deleted.
  • Once a custom profile is deleted, it can not be restored.
  • Deleting a custom profile will not impact VODs that are already encoded.

To permanently delete custom profiles, please refer to the following steps:

1. Find the profile you want to delete in the Profiles list in the ProfileSet's creation/edit page, then click the delete icon on the right side.

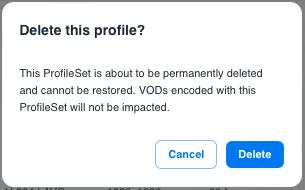

2. A pop-up window will display. Press the “Delete” button to confirm the deletion.

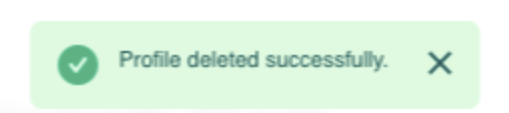

3. A notification will display, confirming the custom profile was deleted.

  • Deleted profiles will also be removed from all ProfileSets.
