VOD ProfileSets

Profile is an important part that defines the video output resolution, video output bitrate, and audio output bitrate for encoding. Furthermore, it will also affect the costing of encoding, storage usages of encoded video and the CDN usages while watching the VOD.

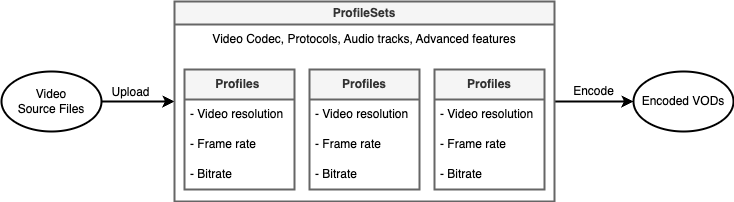

In BlendVision One, you need to define your VOD’s output resolution and bitrate by adding the profiles into ProfileSet. It will define the codec and streaming protocol of your encoding output for each VOD.

BlendVision One provides the ability for you to easily produce adaptive streaming by customizing your owned ProfileSets or directly using the optimal presets we provide.

In this article, we’ll introduce VOD ProfileSet features and the preset list you can use for encoding.



Access VOD ProfileSet list

You can confirm all ProfileSets via the General Settings module on BlendVision One Web Console.

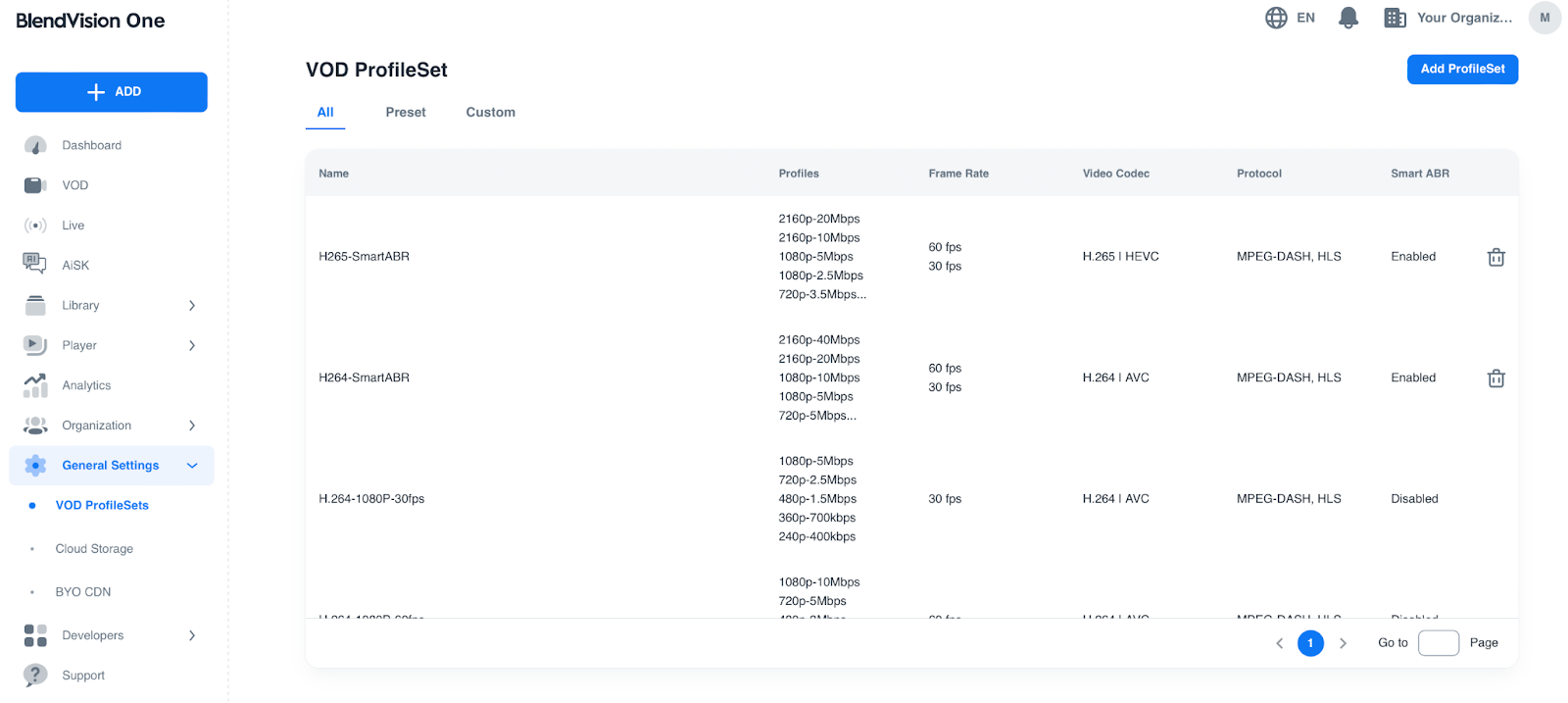

1. Press “General Settings” on the left sidebar on BlendVision One Web Console, then click “VOD ProfileSets” to access VOD ProfileSet list.

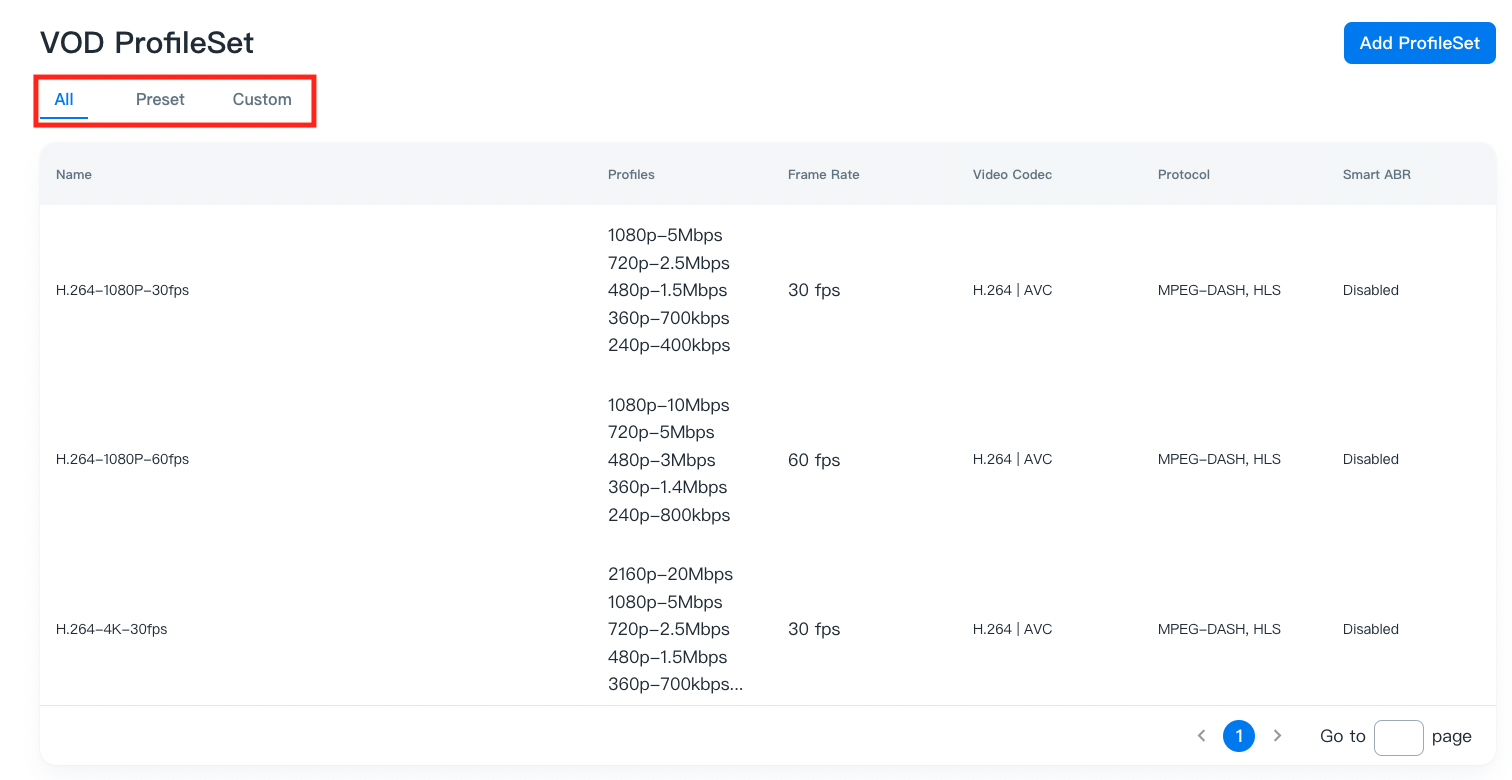

Then you can confirm current VOD ProfileSets that you can use in All/Preset/Custom tab and manage the ProfileSets.



Preset ProfileSets

In Preset tab, BlendVision One has prepared multiple presets with popular profiles  to fit the most requirements. These presets cater to a wide range of requirements, making it easier for users to select the optimal settings for their content.

Here's the table of each presets:

Name Profiles Frame Rate Video Codec Audio Tracks Protocol
H.264-1080P-30fps
  • 1080p-5Mbps
  • 720p-2.5Mbps
  • 480p-1.5Mbps
  • 360p-700kbps
  • 240p-400kbps
30 fps H.264 | AVC First Track MPEG-DASH, HLS
H.264-1080P-60fps
  • 1080p-10Mbps
  • 720p-5Mbps
  • 480p-3Mbps
  • 360p-1.4Mbps
  • 240p-800kbps
60 fps H.264 | AVC First Track MPEG-DASH, HLS
H.264-4K-30fps
  • 2160p-20Mbps
  • 1080p-5Mbps
  • 720p-2.5Mbps
  • 480p-1.5Mbps
  • 360p-700kbps
  • 240p-400kbps
30 fps H.264 | AVC First Track MPEG-DASH, HLS
H.264-4K-60fps
  • 2160p-40Mbps
  • 1080p-10Mbps
  • 720p-5Mbps
  • 480p-3Mbps
  • 360p-1.4Mbps
  • 240p-800kbps
60 fps H.264 | AVC First Track MPEG-DASH, HLS
H.265-1080P-30fps
  • 1080p-2.5Mbps
  • 720p-1.7Mbps
  • 480p-1.0Mbps
  • 360p-500kbps
  • 240p-300kbps
30 fps H.265 | HEVC First Track MPEG-DASH, HLS
H.265-1080P-60fps
  • 1080p-5Mbps
  • 720p-3.5Mbps
  • 480p-2.1Mbps
  • 360p-1.0Mbps
  • 240p-500kbps
60 fps H.265 | HEVC First Track MPEG-DASH, HLS
H.265-4K-30fps
  • 2160p-10Mbps
  • 1080p-2.5Mbps
  • 720p-1.7Mbps
  • 480p-1.0Mbps
  • 360p-500kbps
  • 240p-300kbps
30 fps H.265 | HEVC First Track MPEG-DASH, HLS
H.265-4K-60fps
  • 2160p-20Mbps
  • 1080p-5Mbps
  • 720p-3.5Mbps
  • 480p-2.1Mbps
  • 360p-1.0Mbps
  • 240p-500kbps
60 fps H.265 | HEVC First Track MPEG-DASH, HLS



Note:

  • These presets are not allowed for editing. You can refer to the configurations of these suggested presets, to create your own custom ProfileSets.



Custom ProfileSets

In Custom tab, it’ll list up the custom ProfileSets you created before.

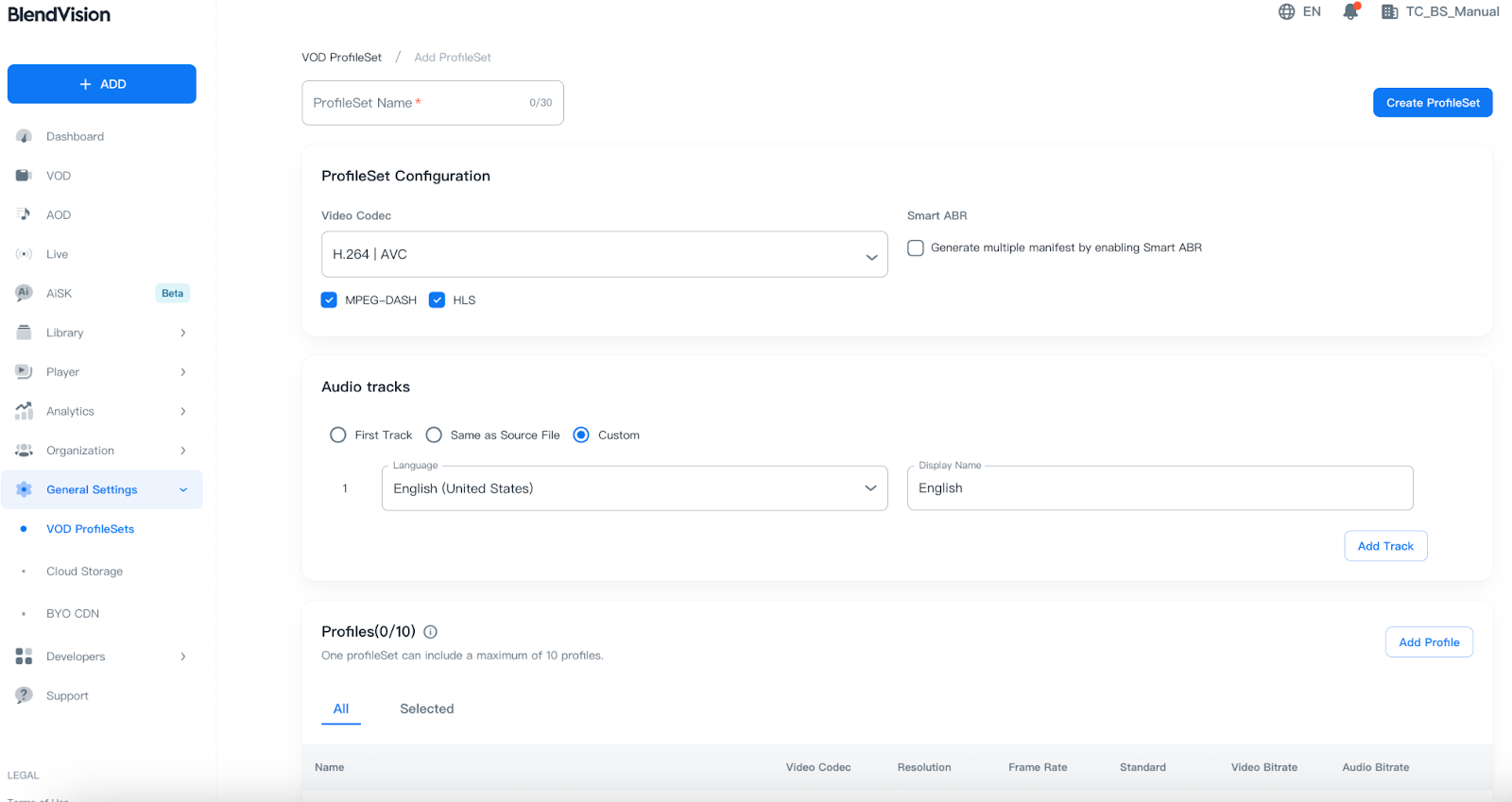

You can easily custom and manage your own ProfileSets to meet the needs of your streaming service, to achieve the best balance between quality and cost.

Refer to these articles for customizable settings and the detailed informations:



Select the preferred ProfileSet for your VOD

To apply the ProfileSet’s configurations for your VOD’s output, you will need to select the preferred ProfileSet when you add a new VOD.

For the detailed steps on selecting the ProfileSet for each VOD, please refer to Add a VOD.

Note: Once VOD is created, the selected ProfileSet of VOD will be uneditable. Please make sure you have the necessary ProfileSets before creating a new VOD.
